Devices Data Docking/Integration Instructions
This instruction covers the Oviphone's Operator networks (4G, NBIoT, Cat. M, etc.), LoRaWAN (LoRa), UWB, and BLE communication devices.
a. 4G devices: Oviphone's 4G devices use the industry's lowest power consumption, ultra-low power 4G Cat.1 Bis chips
and modules. Recommend free "direct device docking with customer platform" docking; Also supports the paid "Oviphone Aiday Platform API Data Push" docking mode
b. LoRaWAN (LoRa) devices can be integrated with Chipstack open-source architecture or TTN platform.
c. NBIoT devices: recommend "AEP data docking for telecom platforms"; Also supports paid 'Oviphone Aidat Platform API data push'“
d. Bluetooth devices: All products of Oufu Communication support ultra-low power Bluetooth BLE5.1. Support docking with Bluetooth gateway and AoA high-precision gateway; Connect Bluetooth devices; Scan all Bluetooth protocols and functions such as beacons.
e. UWB devices: Oviphone's UWB products have watches, Badges, and Helmet Trackers

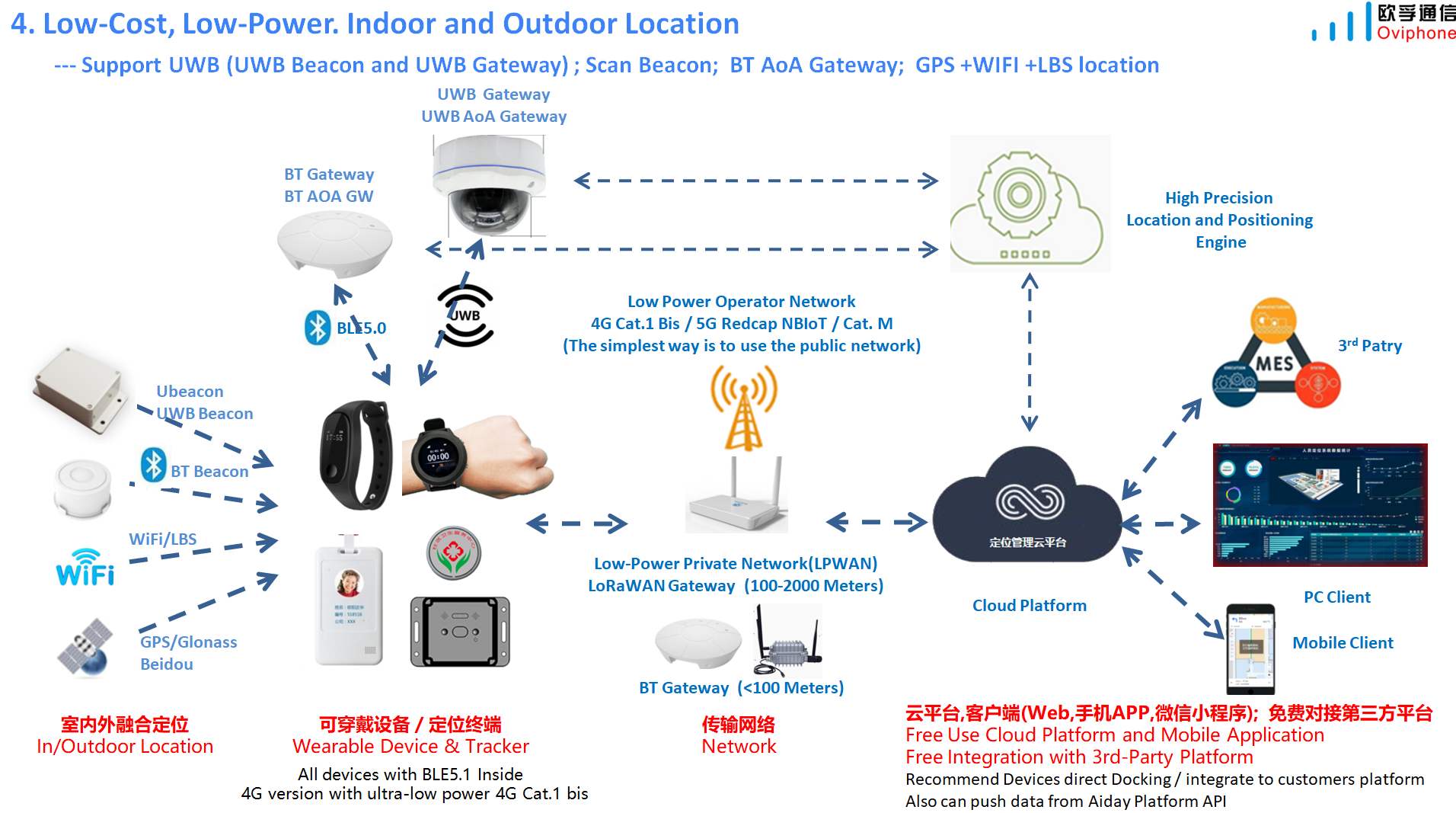

Supporting 4G/LoRa+UWB+GPS Beidou+BLE indoor and outdoor integrated positioning).
Support deployment free UWB beacon, UWB TDoA, UWB AoA single base station.
Support open UWB module and UWB chip SDK, and interface with 3rd-party UWB base stations and UWB beacons.
I. Oviphone Aiday Platform API Data Push（charge Free ）
Clear text push of data on the Oufu platform. The Oviphone Cloud platform, Mobile APPcan continue to be use
Oviphone uses genuine Gaode authorized WiFi, base station positioning database, and API docking to push parsed data (users can save 50000 yuan/year in licensing fees)
API push is universal for all devices, one device docking and can be used to all devices. (For specific information on LoRa and Bluetooth devices, please check with Oviphone)
Data push requires the use of more resources on the Oviphone Aiday platform - servers, databases, and interfaces, so corresponding platform resource usage fees will be charged
1. Non high frequency business equipment: Push service fee: 10 yuan per device.
2. High frequency business equipment: Second level (less than 1 minute) business push, push service fee: 50 yuan/year per device. (High frequency resource usage fee)
3. If a device that has already been successfully pushed needs to update its push address, a fee will be charged for changing the push address again:
a) Less than 10 units: 10 yuan/time b) 10 units or more: 20 yuan/time c) 100 units or more: 50 yuan/time d) 1000 units or more: 100 yuan/time
Note 1: Gaode and Baidu's maps and WiFi databases (Google Map) require a fee based authorization to use (50000 yuan/year). If you want to save authorization fees by directly connecting to device users, please contact Oufu Communication
Note 2: The document has been explained in detail, and upon careful reading, the docking can be completed (in principle, there is no need for Oviphone to provide technical support for docking)
Note 3: For the low-cost and accurate indoor positioning version of the device's Bluetooth scanning, please modify the Bluetooth beacon UUID according to the API document by the customer or purchase the beacon from Oviphone.
If you need to customize customer specified Bluetooth beacon UUIDs or devices with customer specified protocols, please contact Oviphone.
II. 4G Cat.1 Devices
Recommend to use free support “Devices intergare / Docking to Customer's Platform" （Customer platform directly connects to devices: data transmission is more real-time and stable)
Modifying the IP address and port for device docking:
a. If the device is connected to the Oufu Communication Cloud platform, it supports batch or individual device modification of reported IP and port on the Oufu Cloud platform. If modifications are needed, please contact Oviphone.
b. If bulk orders need to be connected to third-party platforms, please indicate in the order (Oviphone will download firmware versions for the specified IP and port during production)
c. If it has already been connected to a third-party platform, it is not possible to modify the IP address online on the Oviphone platform. There are two methods to set it up:
i. You can manually modify the IP and port through Bluetooth (suitable for testing situations where there are not many devices), please refer to the following for details
ii、Or third-party platform development for online modification of IP address functionality
2.1. Default use TCP protocal （part of devices also support MQTT、http or UDP, please check with Oviphone）
1. 4G Cat.1 Protocol: Suitable for all the 4G devices , such as：G805G，G808G，G618G
欧孚通信 --4G Cat.1-TCP协议-通用-2024-10.docx English-Oviphone -TCP protocol for 4G CAT1 devices-2024.docx
2. B2315G/B2315P：General Verion-short link for power save （if you need longer-link verision - high power somsunption, please check with Oviphone. ）
欧孚通信 - B2315G-4G-TCP协议-2024-9.docx English-Oviphone - B2315G-4G-TCP Protocol -2024.doc
3. W200PG：Hongkone version - Longer-link
The sampling and positioning reporting frequencies for health monitoring can be set separately, with switch settings (Bluetooth broadcast, high-altitude fall alarm, sedentary alarm), positioning and health data reporting can be set separately, sedentary alarm trigger time can be set, shutdown/restart instructions can be issued, IP and port modification instructions can be issued, and weather warnings can be issued
欧孚通信 - 香港W200P-4gCAT1设备TCP优化协议-2024-10.docx/English-Oviphone - HK-W200P-4G-TCP Protocol -2024-8 .docx
4. W200PG：General version - Longer-ling (can setting with short- link for power save mode）
The sampling reporting frequency and positioning reporting frequency for health checks can be set separately; Update 20240525 Bluetooth broadcast switch, high-altitude fall alarm switch, sedentary alarm switch, positioning and health data reporting switch, sedentary alarm trigger time, shutdown/restart command when turned on, modify IP and port command issuance
欧孚通信 - W200P-4gCAT1设备TCP优化协议-2024-9.docx English-Oviphone - W200P-4G-TCP Protocol -2024-8 .docx
5. W300G：General version - Longer-ling (can setting with short- link for power save mode）
The frequency of health monitoring sampling and location reporting can be set in different time periods; Bluetooth broadcast switch, high-altitude fall alarm switch, sedentary alarm switch, positioning and health data reporting switch, sedentary alarm trigger time, shutdown/restart command when turned on, IP and port modification command, weather warning command; All data reporting switch, SOS interface prompt message issuance, text message cleaning time, factory reset, immediately report positioning command, immediately report health command
欧孚通信 - W300G-4gCAT1设备TCP优化协议-NFC-2024-9.docx English-Oviphone - W300G-4G-TCP Protocol -2024-8.docx
6. W200PGU：4G+UWB+GPS+Wifi Location+BLE
UWB positioning reporting, UWB ranging alarm, health detection sampling reporting frequency, and positioning reporting frequency can be set in different time periods; Bluetooth broadcast switch, high-altitude fall alarm switch, sedentary alarm switch, positioning and health data reporting switch, sedentary alarm trigger time, shutdown/restart command when turned on, IP and port modification command, weather warning command; Immediately report the positioning command, immediately report the health command, and issue the UWB ranging alarm distance
欧孚通信 - W200PGU-4gCAT1设备TCP优化协议-2024-9.docx
7. Z66：Anti-disassemble wristband, supports alarms for loose lock buckle, open lock, strap breakage, etc
欧孚通信 - Z66-4gCAT1设备TCP协议-2024-5.docx English-Oviphone - Z66-4G-TCP Protocol -2024-8.docx
2.2 MQTT Protocal
1. 4G Cat.1 MQTT ：4G devices general protocal, can use for most of the 4G devices (please check with Oviphone for devices can support MQTT version now)
欧孚通信 --4G Cat.1-MQTT协议-通用-2024-9.docx English-Oviphone - W200P-4G-MQTT Protocol -2024-9 .docx
III. LoRaWAN/LoRa Devices
Oviphone LoRa / LoRaWAN device：Wristband, Smart Watch, Badge, Helmet Tracker etc

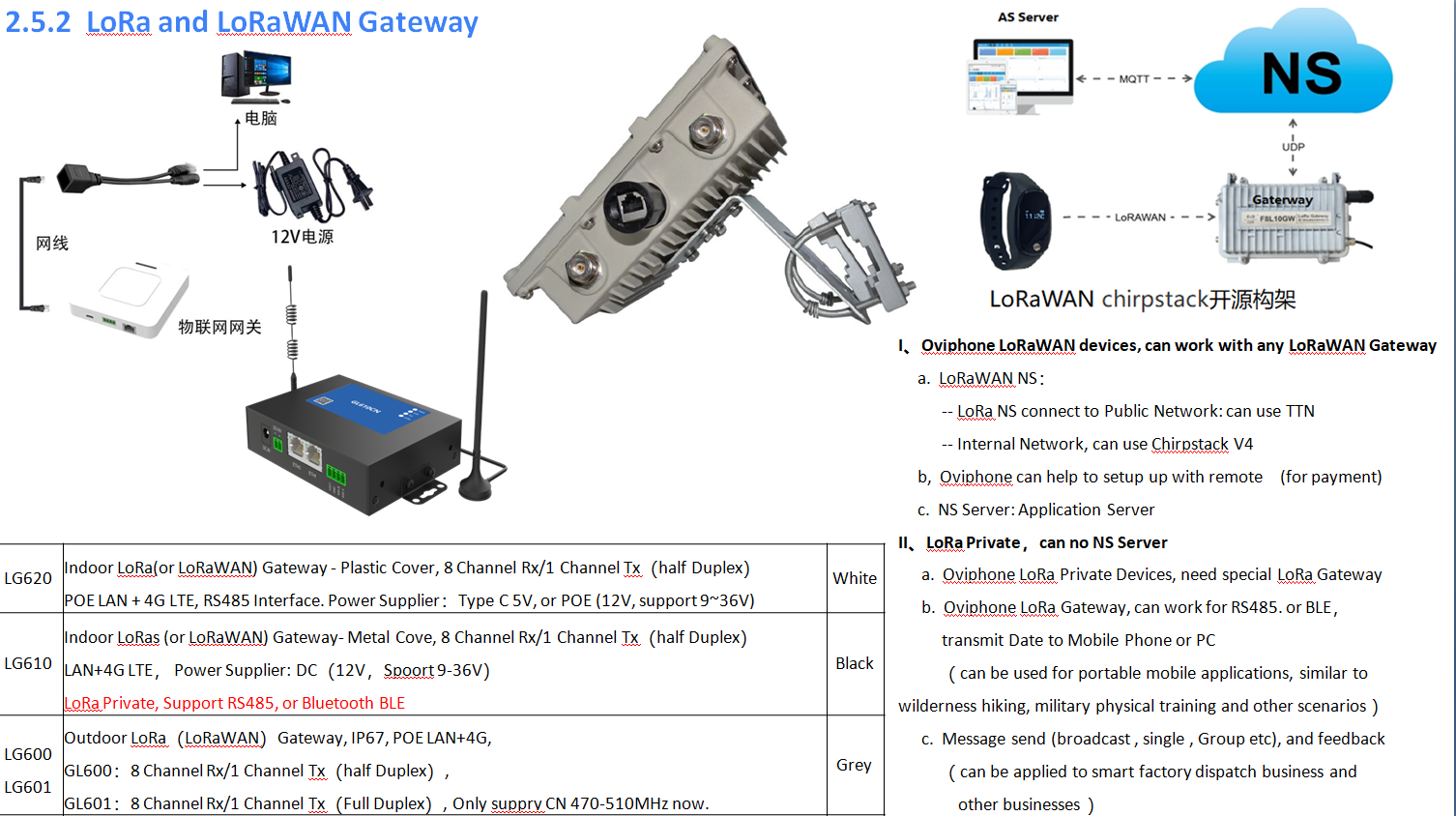

3.1. LoRaWAN Server：chirpsatck Server Integrate Instruction: Debugging instructions for docking with the Chirpstack open-source platform and management platform - including video tutorials (important)
LoRaWAN设备和系统调试安装说明-chirpstack-2024.docx English-LoRaWAN System Debug and Installation Instructions (Preliminary Document)-chirpstack.docx
3.2. LoRaWAN Server:TTN Server ：Debugging instructions for TTN platform and management platform (important)
1. B2315L-LoRaWAN: Support modifying location reporting cycle, location priority, device SOS alarm, health data sampling, etc
Oviphone B2315L LoRaWAN Protocal 通用版本-2024.docx/English-Oviphone - B2315L-lorawanProtocol -2024-9 .docx
2. W200L-LoRaWAN : Support modifying location reporting cycle, location priority, device SOS alarm, health data sampling, etc
Oviphone W200L LoRaWAN Protocal 通用版本-2024.docx/English-Oviphone -W200L-lorawan Protocol -2024-9 .docx
3. W200PL-loRaWAN :Support modifying location reporting cycle, location priority, device SOS alarm, health data sampling, etc
欧孚通信 - W200p LoraWAN协议-通用版本-2024-9 .docx/English-Oviphone -W200PL-lorawan Protocol -2024-9 .docx
4. W200PL-LoRaWAN Hongkong version
Support separate settings for health monitoring sampling reporting frequency and location reporting frequency; Bluetooth broadcast switch, high-altitude fall alarm switch, sedentary alarm switch, positioning and health data reporting switch, sedentary alarm trigger time, shutdown/restart command when turned on, IP and port modification command issued, weather warning issued
欧孚通信 - 香港-W200p LoraWAN优化协议-2024-9.docxEnglish-Oviphone -W200PL-lorawan Optimize Protocol -2024-9 .docx
5. W200PL -LoRa Protocal（Factory dispatch scenario: supports communication in forms such as unicast, broadcast, multicast, etc）
Oviphone W200P LoRaWAN Protocal_协议-工厂派工应用.docx
IV. NBIoT and Cat.M Device
NBIoT devices come with built-in telecom NB cards by default, which are directed towards the AEP platform (please consult Oviphone for other operator card devices)
AEP-协议集合.zip 电信AEP平台对接说明-202220624.docx/
5.高德Wifi定位协议.pdf
4.1. UDP Direct Connection Protocol: Suitable for devices such as China Mobile NBIoT, China Unicom NBIoT cards, overseas NBIoT, and LTE-M (eMTC, CAT-M)
4.2. China Mobile Onenet platform docking protocol: China Mobile card devices also support the Onenet platform; Recommended UDP direct connection docking protocol for mobile card devices
V. Bluetooth (BLE) Devices
All products of Oviphone support ultra-low power Bluetooth BLE5.1. Support docking with Bluetooth gateways, AoA high-precision gateways, Connect Bluetooth devices; Scan all Bluetooth protocols and functions such as beacons
1. Bluetooth Broadcast Docking Protocol Universal Version
2. BLE AoA High precision positioning docking protocol, supporting scanning beacon indoor positioning
3. B601: Bluetooth Broadcast Docking Protocol/B601 AOA High Precision Positioning Docking Protocol
B601-BLE advertisingprotocol-2023.pdf/B601_核芯AOA广播协议-2023.docx
VI. UWB Devices and Application
UWB Devices and Application, please click and check with: UWB Application_Oviphone
