Construction (Mines, sanitation, etc) Products

Oviphone-Construction (Mines, sanitation) Devices and Solution

Devices:

I、W200PG/W200PL/W200PGU/W200PLU：Explosion proof, waterproof, indoor and outdoor integrated positioning, health monitoring smart watch

Currently, dozens of clients in Hong Kong construction sites (domestic, Southeast Asia, Middle East, etc.) are using our health check and indoor/outdoor positioning watches

1. W200PG/W300G watch ultra-low power RTOS system+low-power 4G Cat.1, can ensure usage for more than 1 day. There is firmware specifically designed for Hong Kong construction sites: in traditional Chinese and English, the frequency of health check sampling and location reporting can be set separately; Bluetooth broadcast switch, high-altitude fall alarm switch, sedentary alarm switch, positioning and health data reporting switch, sedentary alarm trigger time, shutdown/restart command when turned on, IP and port modification command, weather warning, pedestrian and vehicle approach alarm, aerial upgrade and other functions (see details) https://oviphone.cn/APIAPP/ ）

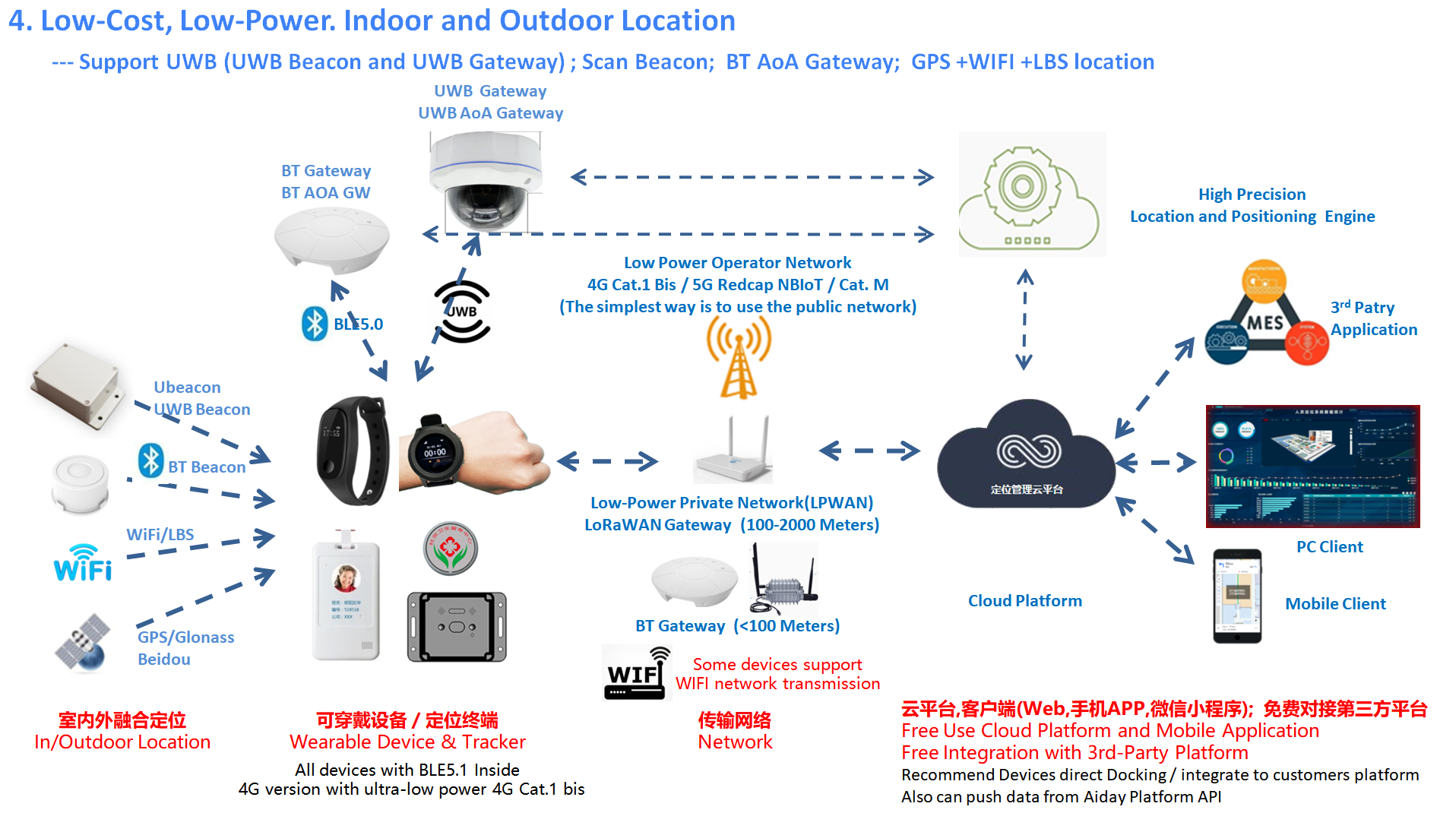

2. The watch supports Bluetooth BLE5.1+GPS Beidou+WiFi positioning (indoor use of the simplest Bluetooth beacon can locate floors and rooms). There are 4G and LoRaWAN versions, as well as UWB versions.

2.1 At the beginning of the construction project, open ground construction is carried out using GPS Beidou positioning and 4G transmission.

We can provide IoT network cards that support all operators in Hong Kong, priced at HKD 100 per year. Supports 6 operators in Hong Kong (CMHK, HKT, CSL, NEWWORLD, SMARTONE, Hutchison). Automatically switch between the network with the strongest signal and mainland China (China Mobile). 30M/month, with a traffic pool, can use up to 100M per month (W200PG is sufficient for use)

2.2. For places without 4G signal (such as tunnels or basements), Bluetooth gateways can be deployed when the area is not large, and data can be reported through the Bluetooth gateway. There are also LoRa/LoRaWAN versions of W200PL and UWB versions of W200PU.

2.3 After the building is built, GPS and Beidou positioning cannot be used indoors. A simple deployment of Bluetooth beacons can be used, and the watch supports collecting beacon positioning.

3. Watches can be laser engraved with device labels on the back case or strap. The watch strap can be equipped with RFID tags (which can quickly identify different watches and facilitate the daily replacement of different wearers on the construction site). Optional Velcro strap for better breathability and comfort (without NFC tag, suitable for high temperature weather in Hong Kong)

3.1. For special usage scenarios such as construction sites, we have also specially equipped the watch with tempered film to protect the screen from impact damage

3.2. The watch also comes with a matching portable charging case (32 watches can be charged in one case), or a facial recognition/IC card recognition charging cabinet.

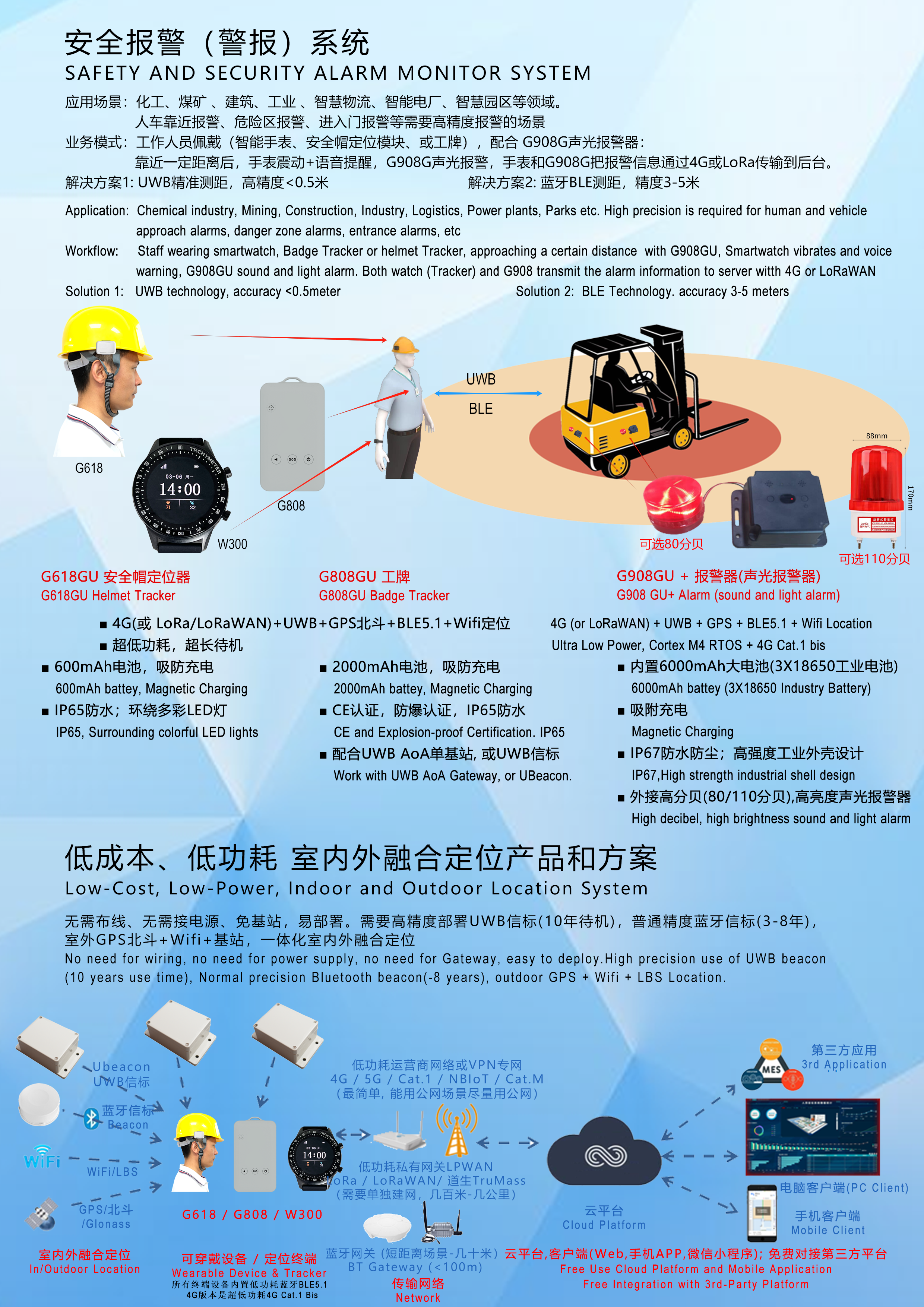

4. The main applications in Hong Kong are W200P/W300 watches (health check+positioning), with 4G and LoRaWAN verion. There are also safety helmet locator G618 and vehicle large battery with sound and light alarm locator G908. G908 can be used in conjunction with a watch for human and vehicle proximity alarms (UWB and Bluetooth alarm versions).

5. We have also deployed a platform for our Hong Kong customers that is compatible with both ultra-low power 4G and LoRaWAN watches.

II、 W300G/W300GU： 580mAh Battery, IP67 Waterproof, Smart Watch

W200P,W300 Spec.png
